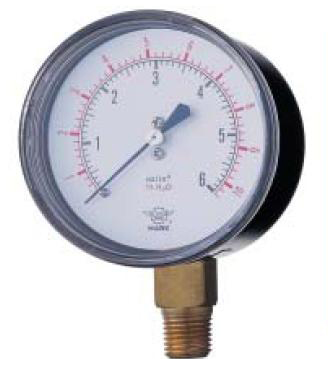

HAWK Low Pressure Gauges 63L & 63B Series

DESCRIPTION:
The HAWK capsule system pressure gauges are designed to measure low pressure from 10inHO to 15 PSI. These gauges use a diaphragm capsule as its sensing element. The sensing element consists two galf capsules which are soldered together. The diaphragm capsule element expands by subjecting to pressure. The expansion is converted into the rotary motion of the pointer by a movement. this motion that make users read the scale easily. Media compatibility and ambient condition must be considered when selecting a gauge. Improper selecting and application of gauges could possible cause gauge failure and lead to possible damage or personal injury.
